Factory Material Transfer Platform Self Propelled Interbay Transfer Car on Rails for Coil Handling
Introduction for factory material transfer platform self propelled interbay transfer car
KPJ Series Factory Material Transfer Platform Self Propelled Interbay Transfer Car on Rails for Coil Handling powered by electric cable reel, the cable reel for the hysteresis coupled to ensure the cable easy to pull by force even worse. Cable Reels 380V power supply to the flat car YZ lifting motor to provide power metallurgy. Self propelled interbay transfer car to run automatically when the cable reel cable roll up or release, by the power cord length of tube effect. Normal maximum operating distance of less than 200m.
Features of self propelled interbay transfer car
This series self propelled interbay transfer car is suitable to be applied in the bed environment, for example, high-temperature and anti-explosion condition.
Compared with KPX (battery power) series transfer car, the using time is unlimited.
Compared with KPD (conductor rail power) series transfer car, this series interbay transfer car has no strict requirement for the construction of the rails.
Compared with KPT (towed cable power) series transfer car, the cost is low.

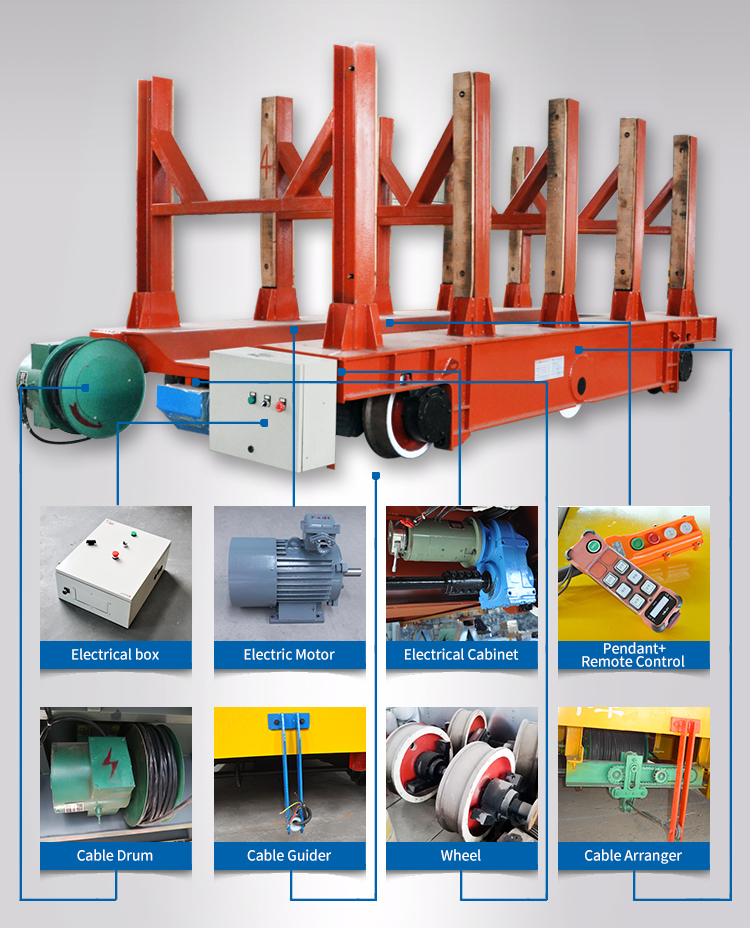

Parts Show of self propelled interbay transfer car
Technical Parameter of self propelled interbay transfer car
| Model | KPJ-2T | KPJ-10T | KPJ-20T | KPJ-30T | KPJ-50T | KPJ-63T | KPJ-150T |
| Rated load (T) | 2 | 10 | 20 | 30 | 50 | 63 | 150 |
| Table size | length(L) | 2000 | 3600 | 4000 | 4500 | 5500 | 5600 | 10000 |
| Width(W) | 1500 | 2000 | 2200 | 2200 | 2500 | 2500 | 3000 |
| Height(H) | 450 | 500 | 550 | 600 | 650 | 700 | 1200 |
| Wheel Base (mm) | 1200 | 2600 | 2800 | 3200 | 4200 | 4300 | 7000 |
| Rail Inner Gauge (mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 2000 |
| Wheel Diameter(mm) | Φ270 | Φ300 | Φ350 | Φ400 | Φ500 | Φ600 | Φ600 |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 8 |
| Ground Clearance (mm) | 50 | 50 | 50 | 50 | 50 | 75 | 75 |
| Running speed (min) | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 |
| Motor Power (Kw) | 1 | 1.6 | 2.2 | 3.5 | 5 | 6.3 | 15 |
| Battery Capacity(Ah) | 180 | 160 | 180 | 250 | 330 | 400 | 600 |
| Battery Voltage(V) | 24 | 48 | 48 | 48 | 48 | 48 | 72 |
| Running Time When Full Load | 4.32 | 4.8 | 4 | 3.5 | 3.3 | 3 | 2.9 |
| Running Distance for one Charge(Km) | 6.5 | 7.2 | 4.8 | 4.2 | 4 | 3.6 | 3.2 |
| Max Wheel Load (KN) | 14.4 | 42.6 | 77.7 | 110.4 | 174 | 221.4 | 265.2 |
| Reference Weight (t) | 2.8 | 4.2 | 5.9 | 6.8 | 8 | 10.8 | 26.8 |
| Recommended Rail Model | P15 | P18 | P24 | P38 | P43 | P50 | QU100 |
Applications
The factory material transfer platform self propelled interbay transfer car is mainly applied in assembly line (ring production line, loop production line), metallurgy industry (steel ladle), warehouse transport, ship industry (maintenance, assemble, container transport), workpiece transport in workshop, lathe transport, steel factory (steel billet, steel plate, steel coil, steel pipe, section steel, steel structure).
Customer Visit

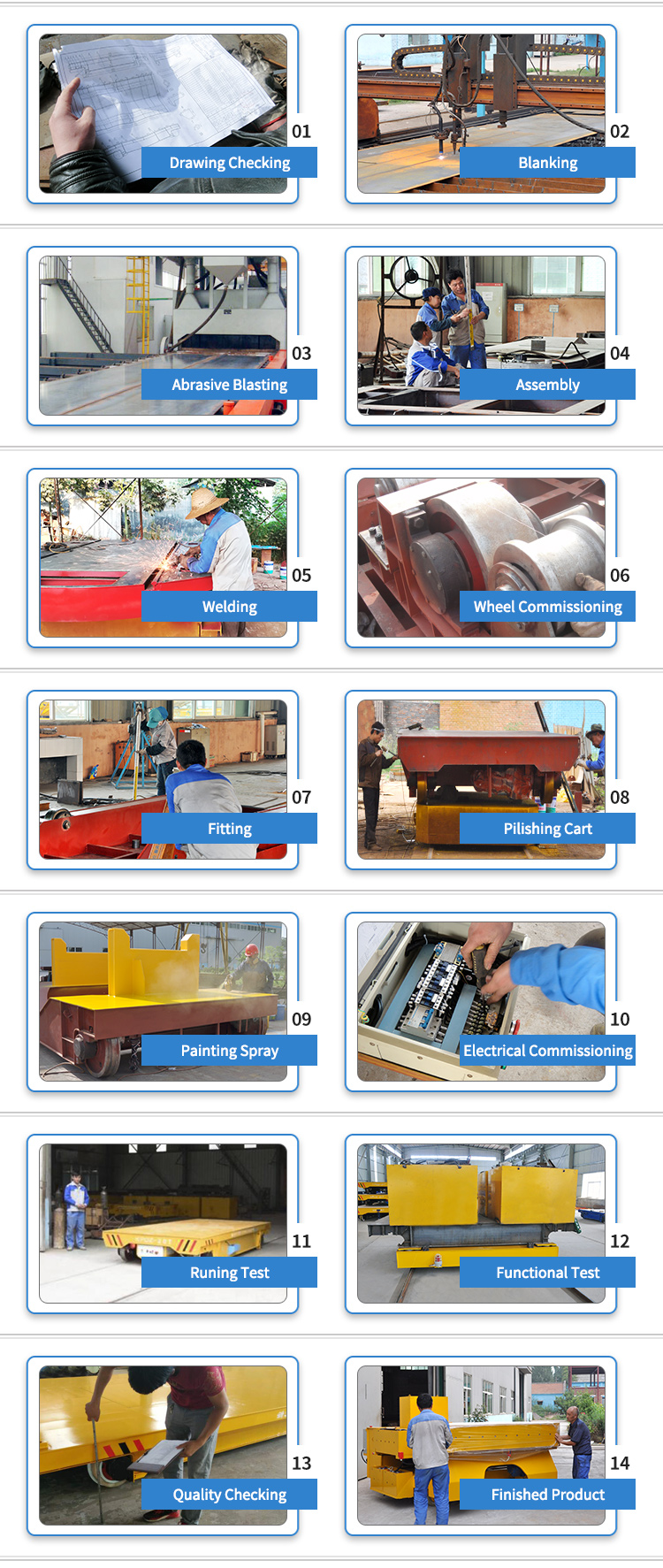

Processing Line
