Towed Cable Electric Motorized Cart Moving On Rails

Name: Towed Cable Electric Motorized Cart Moving On Rails
Brand: Topleader
Price: 3000 USD

Buy cheap Towed Cable Electric Motorized Cart Moving On Rails product

Brand Name : Topleader

Model Number : Rail Transfer Cart

Certification : CE,ISO9000

Place of Origin : China

MOQ : 1 set

Price : $3000-$12000

Payment Terms : L/C, T/T, Western Union

Supply Ability : 600 sets/year

Delivery Time : 30-40 days after receive your prepayment

Packaging Details : The whole Material Handling Transfer Cart will be packed by the tarp, the parts will be packed by polywood case.

Product name : Towed Cable Electric Motorized Cart Moving On Rails

Power supply : Electric Power or Custom

Key Words : motorized cart moving on rails

Load capacity : 1-300T

Running speed : 0-20m/min

Application : Factory ,warehouse and working line

Warranty : 1 year

Color : customized

OEM : Accepted

Contact Now

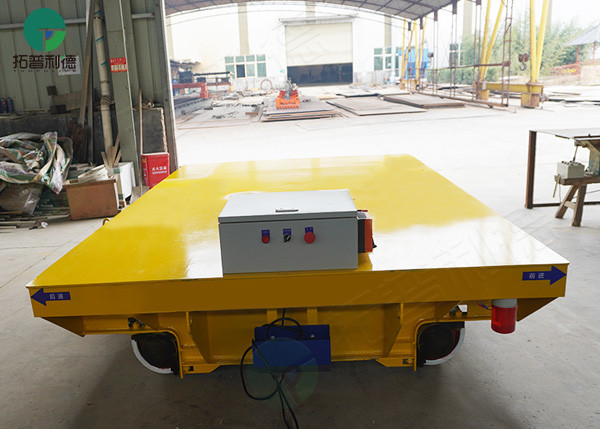

Towed Cable Electric Motorized Cart Moving On Rails

Introduction

Electric flat cart is a good helper for heavy material handling. The motorized cart is powered by a cable, and the length of the cable depends on how far the flat car needs to run. In order to avoid the danger caused by the irregular placement of cables during the running of the handling trolley, we will install the wiring device and conductor post for the flat cart. This electric transfer car runs on rails, and its wheels are made of cast steel. The electric flat car powered by cable has the advantages of simple structure, low cost and unrestricted use frequency.

The workers need to lay the track in advance according to the designated route of transportation, and the flat car runs on the track to the working point. The rail cars can also turn depending on customer requirements.

The parts and materials used in our electric flat cars are of good quality. If you need a transportation plan, please contact us.

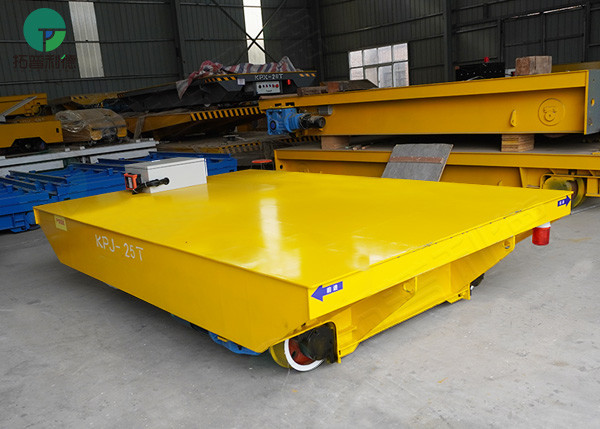

Towed Cable Electric Motorized Cart Moving On Rails

Product Advantages

Towed Cable Electric Motorized Cart Moving On Rails

Detail

Parameter List

Rated load (T)		2	10	20	30	50	63	150
Table size	length(L)	2000	3600	4000	4500	5500	5600	10000
	Width(W)	1500	2000	2200	2200	2500	2500	3000
	Height(H)	450	500	550	600	650	700	1200
Wheel Base (mm)		1200	2600	2800	3200	4200	4300	7000
Rail Inner Gauge (mm)		1200	1435	1435	1435	1435	1435	2000
Wheel Diameter(mm)		Φ270	Φ300	Φ350	Φ400	Φ500	Φ600	Φ600
Wheel Quantity		4	4	4	4	4	4	8
Ground Clearance (mm)		50	50	50	50	50	75	75
Running speed (min)		0-25	0-25	0-20	0-20	0-20	0-20	0-18
Max Wheel Load (KN)		14.4	42.6	77.7	110.4	174	221.4	265.2
Reference Weight (t)		2.8	4.2	5.9	6.8	8	10.8	26.8
Recommended Rail Model		P15	P18	P24	P38	P43	P50	QU100

Application

Towed Cable Electric Motorized Cart Moving On Rails

About Us

Towed Cable Electric Motorized Cart Moving On Rails

tags:steel plant steerable transfer vehicle,steel plant rail vehicle

Towed Cable Electric Motorized Cart Moving On Rails Images
